Sargent 8515-ETL
8515 ETL Sargent narrow stile exit device US10B/613 Oil rubbed bronze finish
Sargent 8515-ETL
8515 ETL Sargent narrow stile exit device US10B/613 Oil rubbed bronze finish

Sargent 8515-G-ETL Narrow Stile Rim Exit Device, Passage Function, Non Keyed, ETL Trim, 43"-48" Bar

SARGENTSKU: 8515GETLUS32DLHR
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse
Price:
$1,763.18/ea
In Stock
In Stock

Related Hardware

Sargent 8510
SARGENT Sargent 12-8510-G Narrow Stile Rim Exit Device, Exit Only, Fire Rated, 43"-48" Bar, Field Reversible, Grade 1 Panic Bar
From $1,356.96
Choose options
Sargent 8513-ETL
SARGENT Sargent 8513-G-ETL Narrow Stile Rim Exit Device, Key lock Or Unlocks Lever, 43"-48" Bar, ETL Trim
From $1,763.18
Choose options
Sargent 12-8515-ETL
SARGENT Sargent 12-8515-G-ETL Fire Rated Narrow Stile Rim Exit Device, Passage Function, Non-Keyed, ETL Trim, 43"-48" Bar
From $1,873.12
Choose options

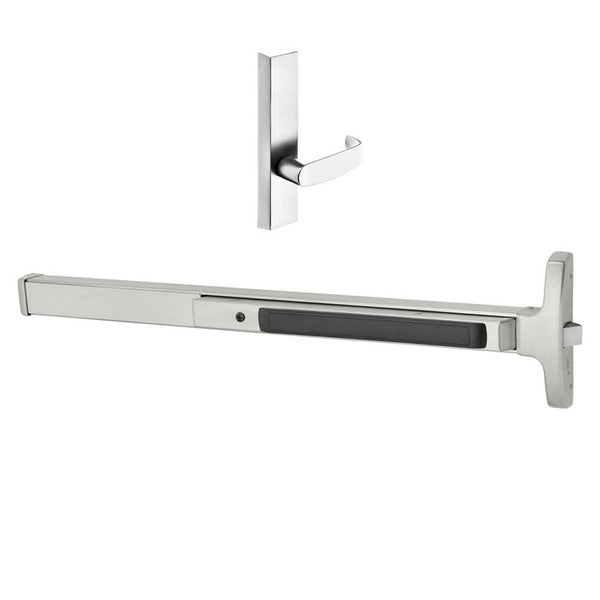

Sargent 8515-G-ETL is a 43"-48"Narrow Stile Rim Exit Device with Lever Passage Trim Non-Keyed, The 8515 With ETL Lever Trim Is Ideal For Use In Institutions and Commercial Spaces, Healthcare Facilities. The 8515 Is a Narrow Stile Rim Exit Device Handed LHR Or RHR In US32D Satin Stainless Steel Or US10B Oxidized Dull Bronze Finishes.‚

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No

‚

Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Lever Classroom
Device Length 48"
Includes Trim Yes, ETL
Minimum Stile Size 2"
Door Material Aluminum
Door Width 43" to 48"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated No
Product Type Rim Exit Devices

‚

Product Cut Sheet

Panic Handing Chart
