Description

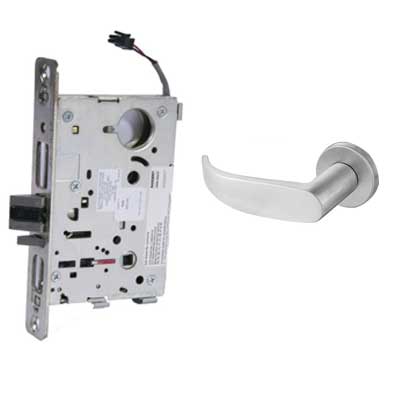

Sargent RX 8270 24V LNP 26D/626 Satin Chrome finish - Fail-Safe Electric Mortise Lock, 24V With Request To Exit Electrified Mortise Lock, LN Rose, P Lever, RX Switch
The Sargent RX-8270-24V LNP 26D/626 Electric Mortise Lock Fail-Safe, 24V With Request To Exit Electrified Mortise Lock, LN Rose, P Lever, RX Switch, Satin Chrome Finish. Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail-safe and fail-secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand-alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doors and satisfy industry standards for operating temperature, shock, and fire hazards.
| Technical Specs | |
| Function |
70-Electrical Fail-Safe |
| Lever/Knob Design | P - Lever |
| Rose/Escutcheon Design | LN Rose (2" Diameter) |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Number of Keys | 2 |
| Hand | Field Reversible |
| Door Thickness | 1-3/4" |
| Bolt Projection | 3/4" |
| Strike Number | 82-0110 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Switch Type | RX |
| Product Type | Electric Mortise Lock |
