Description

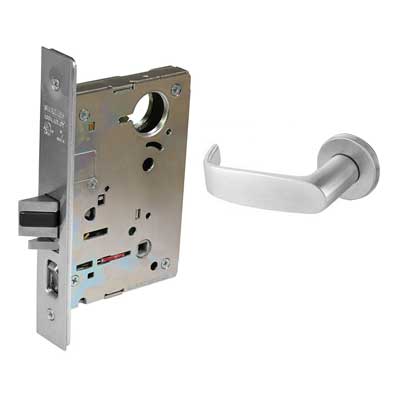

Sargent 8204 LNL 26D Mortise Lock with Storeroom or Closet Function, Key retracts latch, - LN Rose, L Lever
The Sargent 8204 LNL 26D Mortise Lock is a heavy-duty Grade-1 lock. It has storeroom or closet function.
Features: Sargent 8204 LNL 26D Mortise Lock
- LN Rose, L Lever, LA Keyway, and Keyed Random
- Satin Chrome Finish
- 2-3/4" backset
- For use on 1-3/4" thick doors.
| Technical Specs: Sargent 8204 LNL 26D Mortise Lock | |
| Function | 04 Storeroom Function |
| ANSI Function |
F07 - Storeroom/Exit |
| Lever/Knob Design |
L - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
Sargent 8204 LNL 26D Mortise Lock Handing Chart
