Sargent 55-12-NB8713-F-ETL-84-US32D
Sargent 55-12-NB-8713-F-ETL-84, Fire Rated Surface Vertical Rod, (55) Request to Exit, 84" Door HT, 36" Bar, ETL Trim
Sargent 55-12-NB8713-F-ETL-84-US32D
Sargent 55-12-NB-8713-F-ETL-84, Fire Rated Surface Vertical Rod, (55) Request to Exit, 84" Door HT, 36" Bar, ETL Trim

Sargent 55-12-NB-8713-F-ETL-84, Fire Rated Surface Vertical Rod, (55) Request to Exit, 84" Door HT, 36" Bar, ETL Trim

Brand: SARGENTSKU: 5512NB8713FETL84US32DLHR
Color: '-US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Price:
$2,298.59/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time

Related Hardware

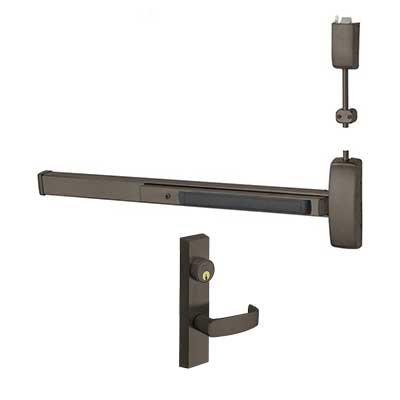

The Sargent 55-12-NB8713-F-ETL-84 is a Top Latching Surface Vertical Rod Fire Rated Exit Device, has an ETL Lever trim, Key Locks Or Unlocks Outside Lever. The Sargent 55-12-NB8713-F-ETL-84 has a Request to Exit Option, 36" rail length that is Grade One making it Ideal For Commercial And Institutional Facilities.

NB8700 Series Surface Vertical Rod Exit Devices

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. This series has both rated and non-rated openings.
  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Classroom
Device Length 36 In.
Hand LHR or RHR
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim YES, ETL TRIM
Minimum Stile Size 4-1/2" with Trim, 3-1/2" without Trim
Door Material Metal or Wood
Door Width 33 In. to 36 In.
Door Height 84 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Surface Vertical Rod Exit Devices
