Sargent 49-8265-LL-US26D Privacy, Bedroom or Bath Mortise Lock, L Rose, L Lever, with Occupancy Indicator, Field Reversible, Satin Chrome

SARGENTSKU: 498265LLUS26D

Price:
Sale price$737.40/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

The Sargent 49-8265-LL-US26D Privacy, Bedroom or Bath Mortise Lock, has an L - Lever, an L - Rose, has a (49) Occupancy Indicator with an Emergency Release which mounts to the outside of the door, is Field Reversible, comes with an ASA Strike, is Grade 1 Heavy Duty, and comes in US26D Satin Chrome (626).

Sargent 8200 Series Overview

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements
  • UL-cUL listed for 3-hour fire doors and windstorm applications
  • Thru-bolted lever trim and strengthened cylinder retainer
  • Available with security key systems (Degree, Signature, KESO, and XC)
  • Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim), and monitoring
  • 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
  • Available with behavioral health trim
  • 10-year warranty
  • Patented design and construction

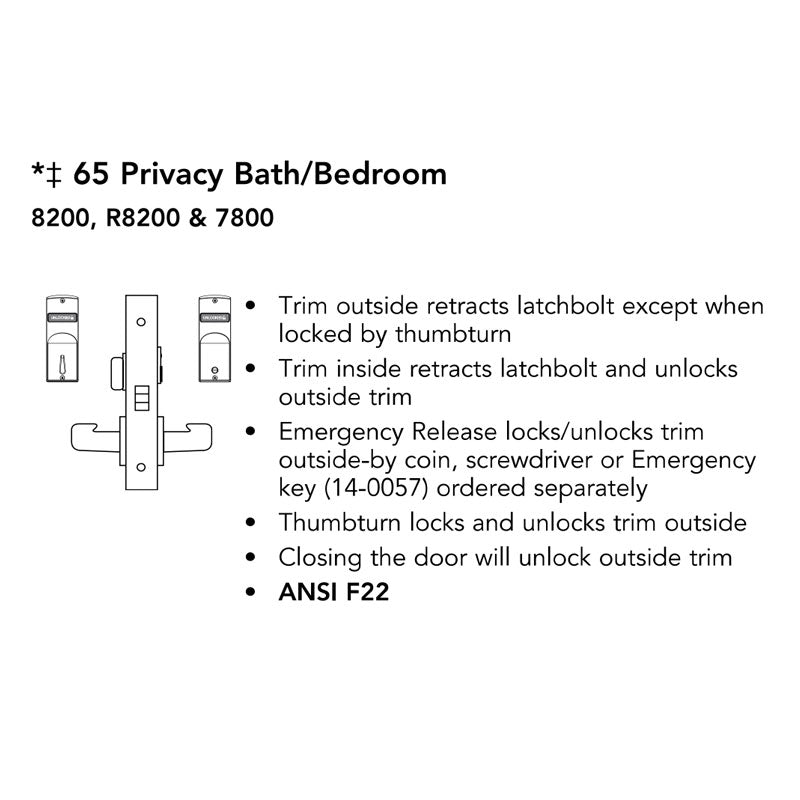

49 - Option Occupancy Indicator with Emergency Release

  • Ideal for restrooms or conference rooms where easy determination of use needs to be made
  • OCC/VAC indicator plate standard
  • Mounts on the outside of the door
  • Emergency coin-operated release standard
  • Functions and Roses available: – 65, 66, 68 Functions with 7800, 8200, and R8200 locks, CR, E, L, LN, O & TR Roses
  • As a retrofit, order 185P x finish
Manufacturer Sargent
SKU 49-8265 LL 26D
Grade Grade 1
Origin USA
Unit of Measure Each
Application Complete Lock
Base Material Brass or Bronze
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}
Finish 626/US26D
Finish Description Satin Chrome



Product Type Mortise Lock

Cylinder Mortise Handing Chart
